Principle and structure of magnetic disk separation and purification system

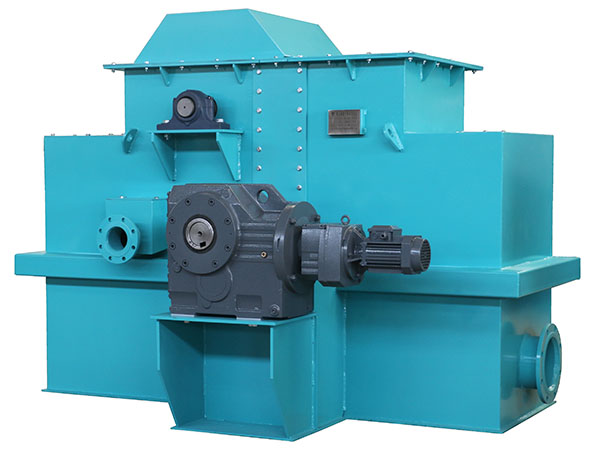

The advanced magnetic disk separation and purification system is comprised of a set of powerful rare-earth magnetic disk machinery designed for separating materials. As illustrated in the figure, wastewater passes through the flow channel between the magnetic disks. Magnetic suspended particles within the water are attracted to the disk surface by the magnetic field force, and subsequently separated from the water as the disks rotate. Once the disks reach the slag scraper, the sludge is discharged from the disk in the magnetic isolation area. The sludge is scraped into a discharge tank by the scraper. The collected sludge is directed into a magnetic separation drum, while clean water is extracted and exits through the designated water outlet, completing the purification process.
Specifications
| Model | Max. flow rate (m³/h) | Dimensions | Weight | Main power (kW) | Scraper power (kW) | Feeding power (kW) | Disc diameter (m) | Number of disc |
| 60 | 2500×1960×1750 | 1800 | 0.55 | 0.75 | 0.75 | 1.0 | 9pcs | |
| 80 | 2500×2050×1750 | 2000 | 0.55 | 0.75 | 0.75 | 1.0 | 11pcs | |
| 120 | 2500×2230×1750 | 2200 | 0.55 | 0.75 | 0.75 | 1.0 | 16pcs | |
| 150 | 2500×2650×1750 | 2500 | 0.55 | 0.75 | 0.75 | 1.0 | 20pcs | |
| 60 | 2500×1960×1750 | 1800 | 0.55 | 0.75 | 0.75 | 1.0 | 9 pcs | |
| 80 | 2500×2050×1750 | 2000 | 0.55 | 0.75 | 0.75 | 1.0 | 11 pcs | |
| 120 | 2500×2230×1750 | 2200 | 0.55 | 0.75 | 0.75 | 1.0 | 16 pcs | |
| 150 | 2500×2650×1750 | 2500 | 0.55 | 0.75 | 0.75 | 1.0 | 20 pcs | |
| 200 | 3300×3160×2400 | 5900 | 0.75 | 1.1 | 1.1 | 1.5 | 16 pcs | |
| 200 | 3300×3550×2400 | 6650 | 0.75 | 1.1 | 1.1 | 1.5 | 20 pcs | |
| 300 | 3300×3550×2400 | 7400 | 0.75 | 1.1 | 1.1 | 1.5 | 24 pcs | |
| 400 | 3400×3950×2400 | 9100 | 0.75 | 1.1 | 1.1 | 1.5 | 32 pcs | |
| 500 | 3400×4340×2400 | 11000 | 0.75 | 1.1 | 1.1 | 1.5 | 40 pcs | |
| 600 | 3400×4730×2400 | 12100 | 0.75 | 1.1 | 1.1 | 1.5 | 48 pcs | |
| 700 | 3450×5130×2400 | 13550 | 0.75 | 1.1 | 1.1 | 1.5 | 56 pcs | |
| 800 | 3450×5520×2400 | 15200 | 0.75 | 1.1 | 1.1 | 1.5 | 64 pcs |
For other technical parameters, please consult us. Xuyang has the right to modify the model and parameters without further notice.
Brief description of process flow
· A sewage pump extracts water from the inlet, transporting it to a coagulation reaction tank. Here, the water is uniformly mixed with a magnetic substance of a specific concentration.
· Once combined with the magnetic substance, the water undergoes a reaction facilitated by a coagulant and a coagulant aid. This reaction causes the magnetic and non-magnetic suspended substances to unite, resulting in the formation of magnetic flocs.
· After the coagulation, the water containing the magnetic flocs flows into a super magnetic separation device. Here, a magnetic disk isolates and purifies the magnetic flocs from the rest of the water. This process enables the purification and separation of the magnetic flocs from the water, which can then be discharged or reused.
· The separated micro-magnetic flocs are further processed by a magnetic powder recovery device. This separates them from the non-magnetic sludge, enabling the magnetic substances to be recovered for reuse. The remaining sludge is moved into a concentration tank, where it undergoes treatment by a sludge dehydrator.
